26.november

Technical Equipment: approx. retail price total
Nossendorf
3 Macintosh G4 / 1 GHz Computer 2.700.- 8.100.-
3 19" Monitors 300.- 900.-
5 iMac 700 MHz Computer (small Models) 1.400.- 7.000.-
5 WebCams 200.- 1.000.-
1 Video Beamers (rental equipment) rental
1 projection screens rental
1 DSL/Cable Ethernet Router 300.- 300.-
1 T1 Internet connection
(at least a DSL/Cable connection)
Not a shared network if possible. ---
_______________________________________________________________
Total: 17.300.-
Additional material:
Ethernet cables
Comments: Technical Equipment
3 x Macintosh G4 / 1 GHz Computer
We would prefere Apple Mac G4 Computers for serveral reasons:
1. Apples new OS X has a build in Apache Web Server which can run the www.Syberberg Web Site in a closed network for Centre Pompidou.
The visitors on the iMac Terminals can surf the "Intranet" without a real connection to
the internet.
2. The G4 Computers are build for a 24/7 nonstop usage. Without hardware errors.
3. OSX System doesn't crash anymore. Crashed applications can remotely restart.
4. The hole Syberberg site was build on a Mac. So Mr. Syberberg is familiar with this system and can remote control his installation for updates and news from home.
Also the System Administrator is able to fix some problems over the internet.
5 x iMac (Terminals)
We would prefere iMacs 'cause of the above mentioned reasons.
Additionally the look is very futuristic and the computers are "top of the art".
Every visitor will be attraced by these devices.
Beside they are not expensive if you consider the included 15" Flat Panal Display.
The small model is good engnough for our needs.
1 x VideoBeamers + projection screen
That should be a rental item. Prices varies a lot.
Good Video Beamers are very expensive.

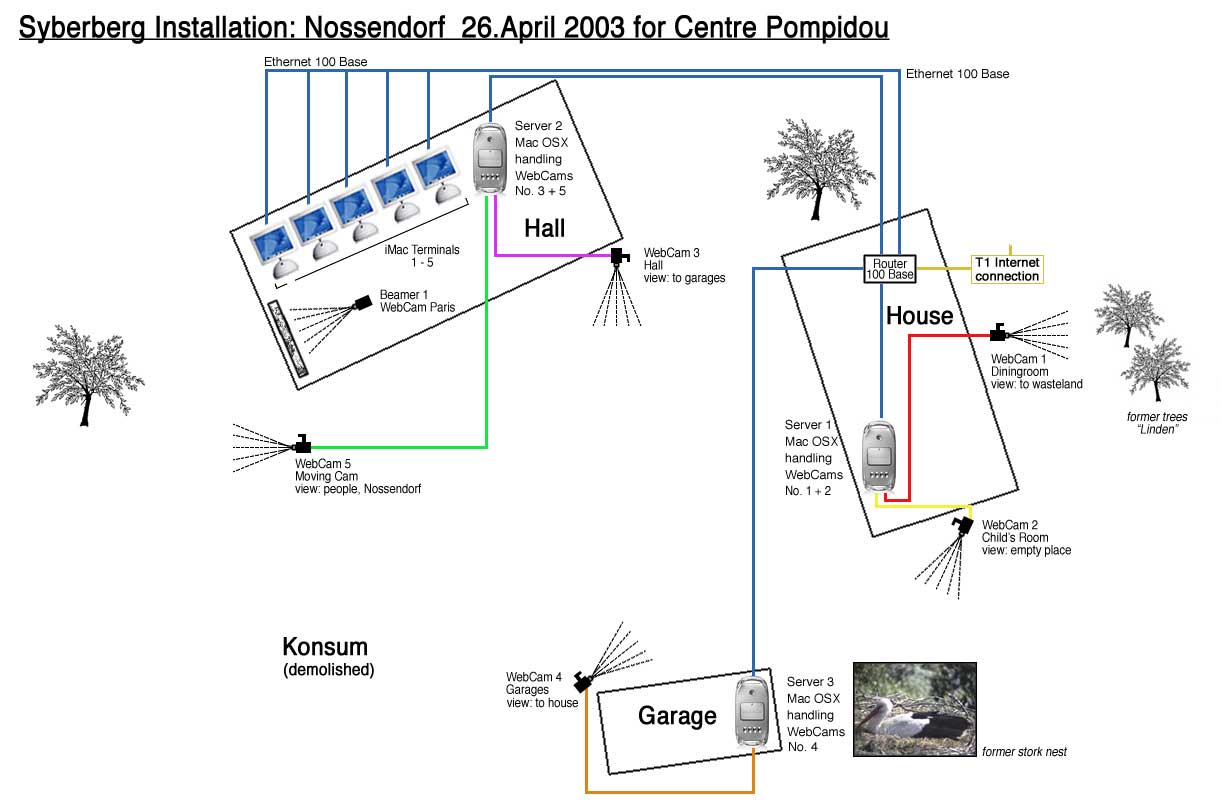

Syberberg Installation Nossendorf for Centre Pompidou:
Comments:
Building: House
This is the main house where we install two webcams.
One webcam (no.1) is placed in the "Dinigroom" (groundfloor) with a view to the wasteland of Nossendorf. The second webcam (no.2) is placed in the "Child's Room" (first floor) and is picturing a empty place where the former stork nest was placed.
Both cameras are connected to a computer (Server 1) which is controlling the live streams.
The computer is connected to a 100-base-ethernet networkt which has access to the internet via a router.
Building: Hall
Outside the hall we have a webcam (no.3) which is monitoring the Garage.
Additionally, there is a second moving webcam (no.5) close to the hall, which has an overview of Nossendorf and the people arround it.
Both cameras are connected to a computer (Server 2) which is controlling the live streams.
The computer is connected to a 100-base-ethernet networkt which has access to the internet via a router.
Also there are 5 new iMac Terminals inside the hall where people can view the live webcams from Centre Pompidou. An additional beamer shows on a large screen selected live webcams from Centre Pompidou.
Building: Garage
A webcam (no.4) close to the garage is monitoring building the hall and the area arround it.
this camera is also connected to a computer (Server 3) which is controlling the live stream.
The computer is connectec to a 100 base-ethernet networkt which has access to the internet via a router.
Konsum
This building is a small former supermarket which will be demolished soon.
